"Wood Energy at its Best"

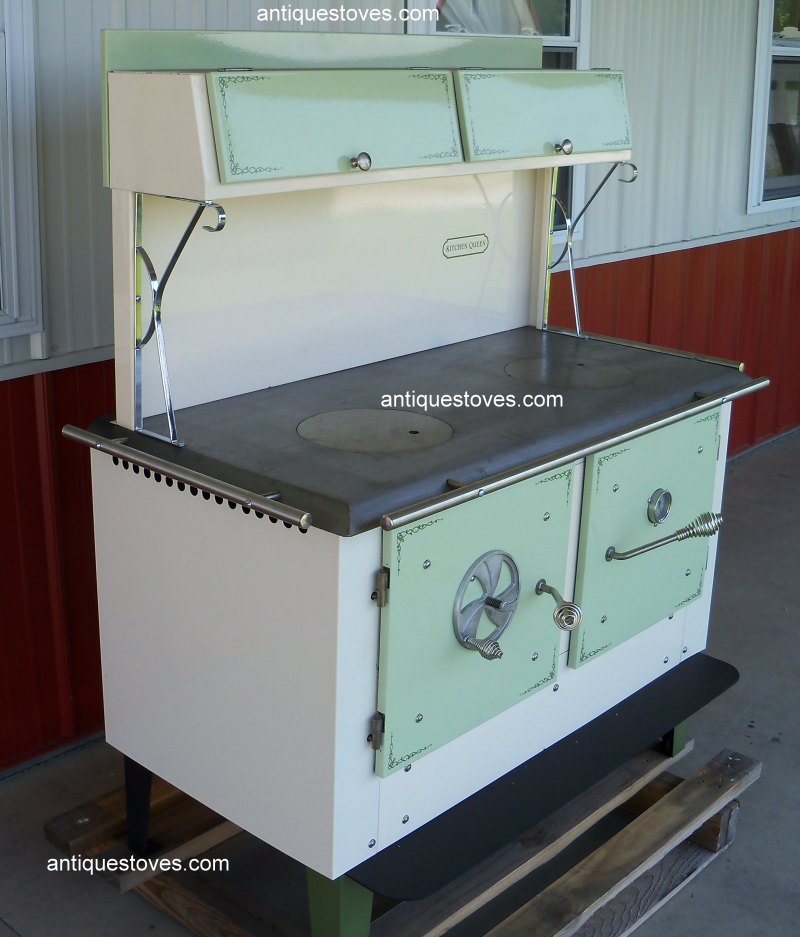

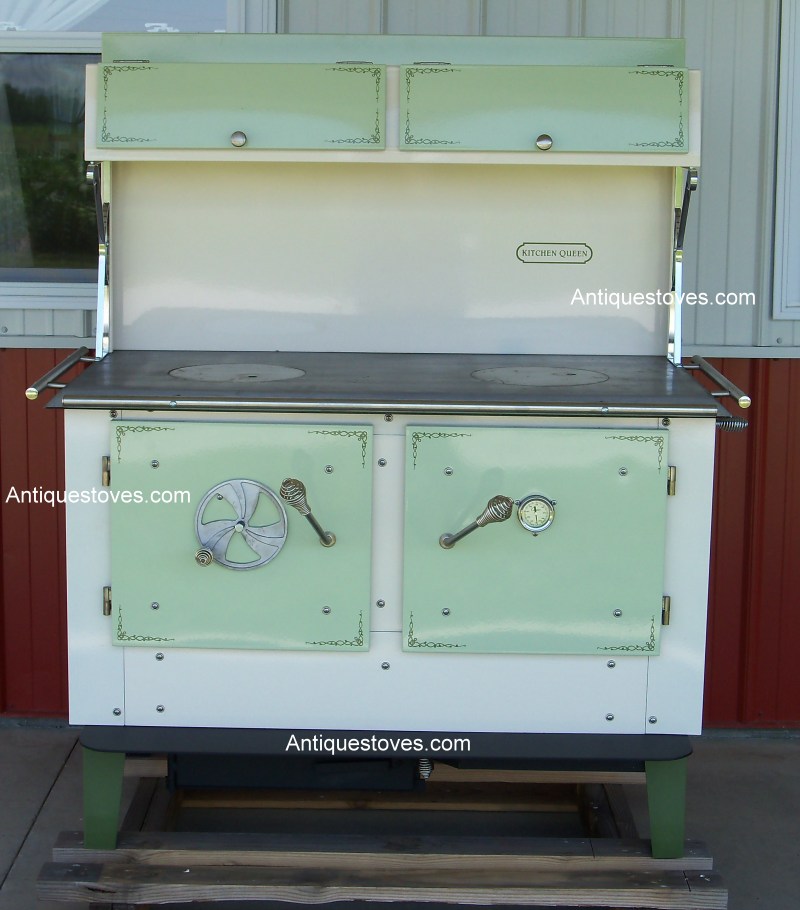

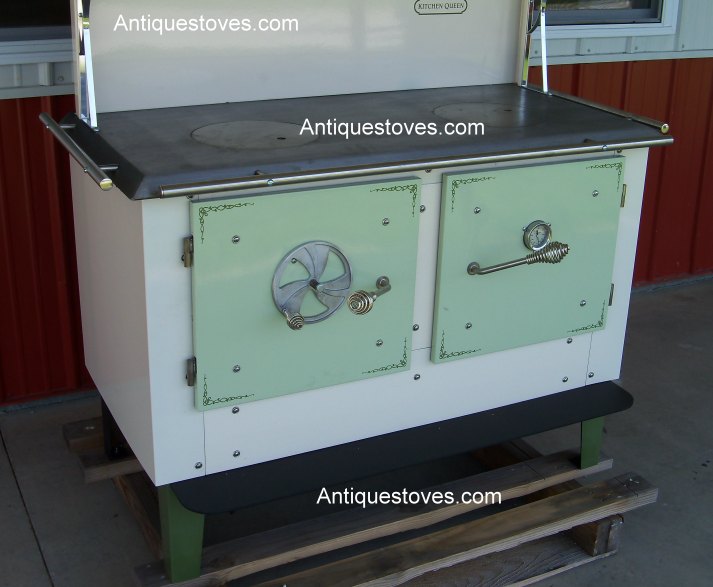

Kitchen Queen Wood Cook Stove, Green and Cream

Kitchen Queen  480 - Wood Cook Stove

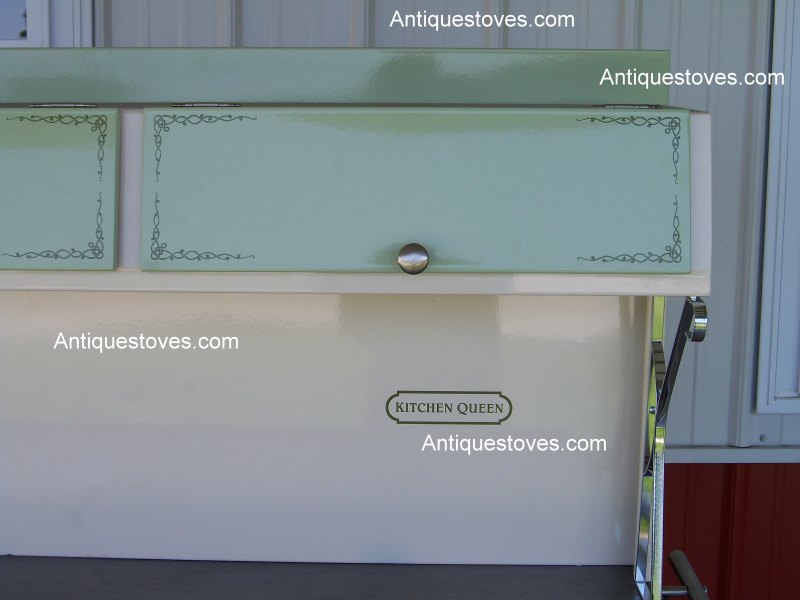

Green and Cream Color option comes with warming oven



The Kitchen Queen wood cook stove has been designed and tested with economy, efficiency and utility in mind.  The Kitchen Queen wood cook stove works with natural heat convection.  The design is a radical and daring departure from the wood ranges of yesteryear.

The Kitchen Queen will:

Cook your Food Heat your Water Warm your Home

Bake your Bread

Save you Money


Kitchen Queen features:

New Kitchen Queen design reduces creosote  buildup to a bare minimum.

Under normal circumstances, virtually no liquid creosote is deposited in the stove.

Two hot water heating systems:

a 17 or 25 gallon reservoir that fits neatly on the back of the stove (taking up no extra floor space), or coils for hooking up to a remote storage tank.

The Kitchen Queen is constructed of heavy gauge steel with all seams welded throughout for lifetime airtight construction.
The Kitchen Queen has a large airtight firebox capable of heating up to 2500sq. ft. Choice of two Kitchen Queen sizes. Large fire loading door reduces wood splitting.
The Kitchen Queen large has a even-heating oven.

Heat is first directed under the oven to work with natural heat convection.

Porcelain enamel finish High back with 7" or 9" warming shelf keeps things you need handy.
Warming Oven or Shelf Stay cool spring handles. No splitting or burning off.
Porcelain enamel oven liner. Smooth one-piece top with 10 inch lids makes cleaning easier. Grates and ash pan for easy cleaning.

Wood cook stove air flow


Click on picture to enlarge

Kitchen Queen wood cook stove air flow


Click on line picture of Kitchen Queen to enlarge

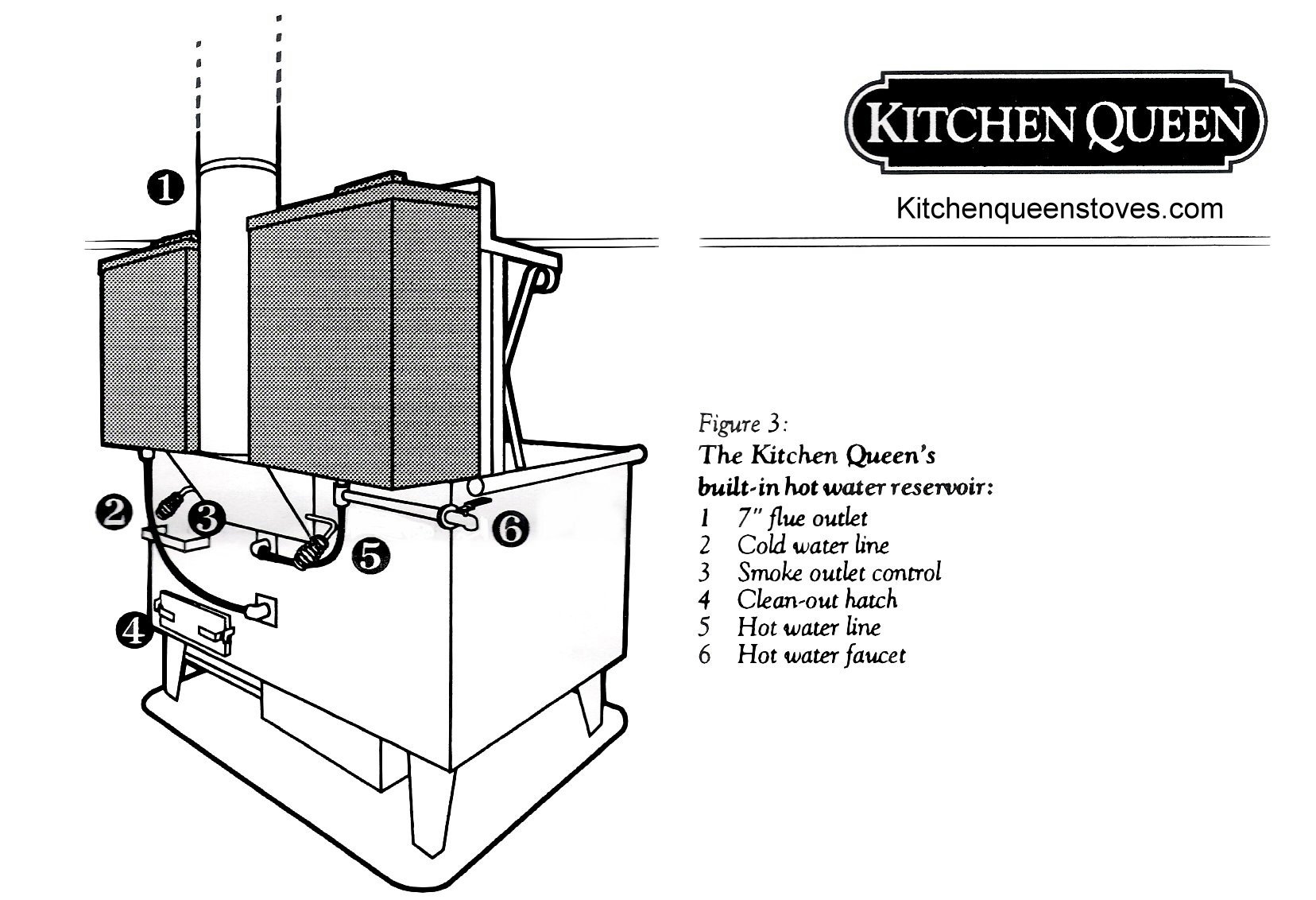

The Kitchen Queen wood cook stove has a 24 gallon water reservoir system, that heats water via a water siphon system. Cold water enters the firebox through a heat exchanger (water coil) and converts it to hot water, with no moving parts or electricity. The heat exchanger can be connected to a large hot water tank for whole house use.


Click on picture to enlarge

Kitchen Queen has Natural Heat Convection

Of course every stove works with heat convection, which is to say that heat naturally rises. But the Kitchen Queen takes a better advantage of this principle. Look at grandma's old stove in Figure 1. See how the heat circulates over the top, down the far side next to the water reservoir, under the bottom and then out the flue. Now compare Figure 2 to see how heat circulates in the Kitchen Queen. notice that the flow is first directed under the oven, up the right side, over the top, and then out the flue. The flow of heat and smoke is not directed at any point to take an unnatural downward turn. This is why we say the Kitchen Queen works with natural heat convection. This is truly a remarkable innovation in the design and function of a wood cook stove and, to our knowledge, is the only stove currently being manufactured that routes the smoke this way.

What are the Kitchen Queen advantages? It simply works better. The smoke and heat travel in a natural direction. But, most importantly, the smoke is not routed past any cooling surface, and therefore, is not cooled below 250 degrees F, the point at which liquid creosote is deposited on the cooling surface. This means less work for you.

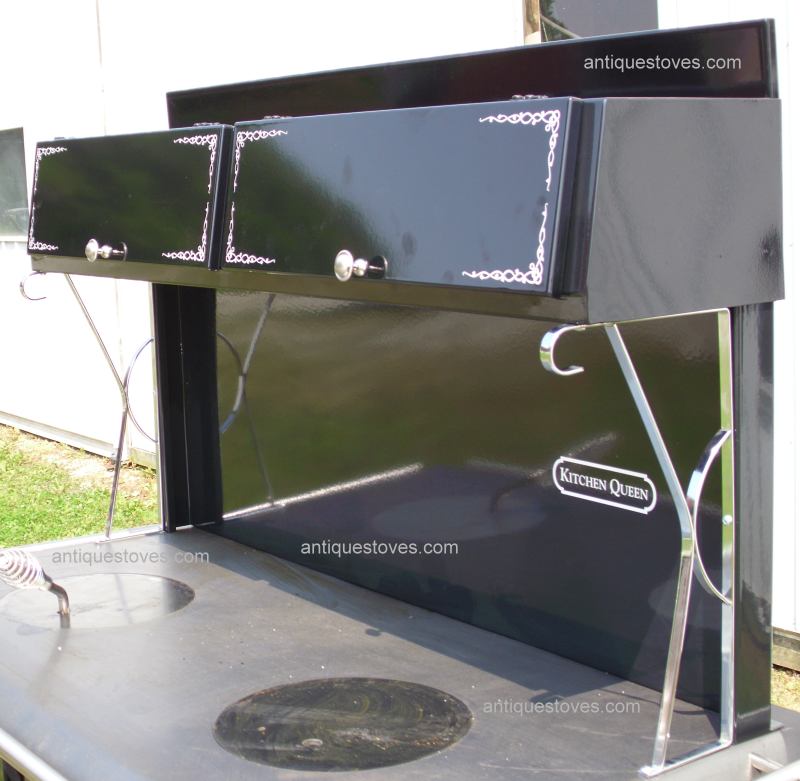

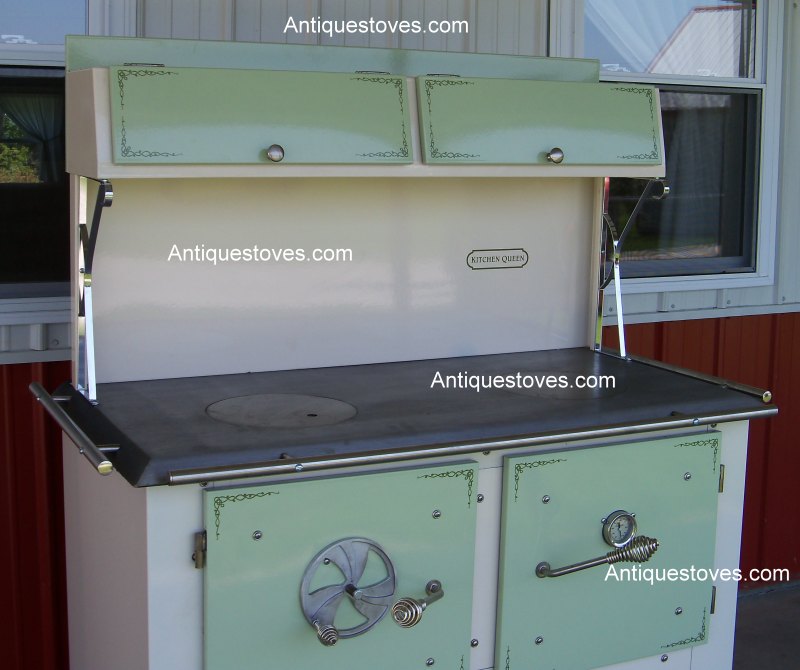

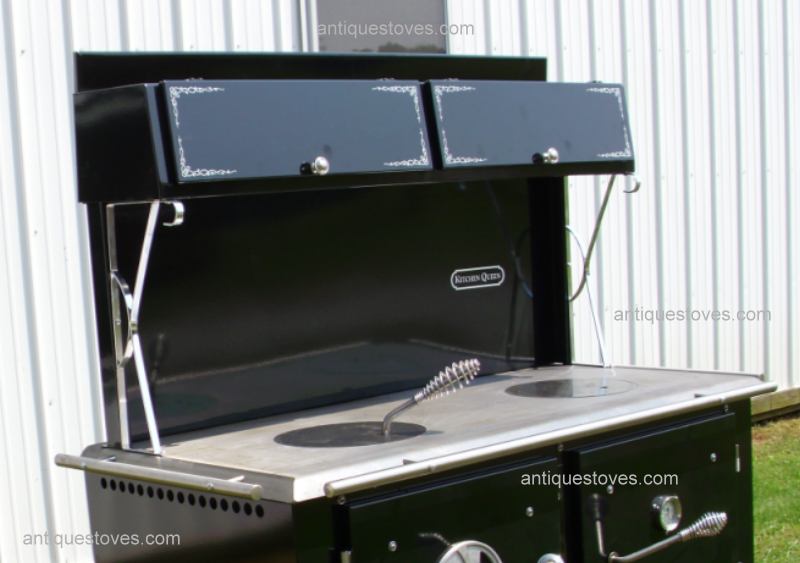

Kitchen Queen Warming Oven

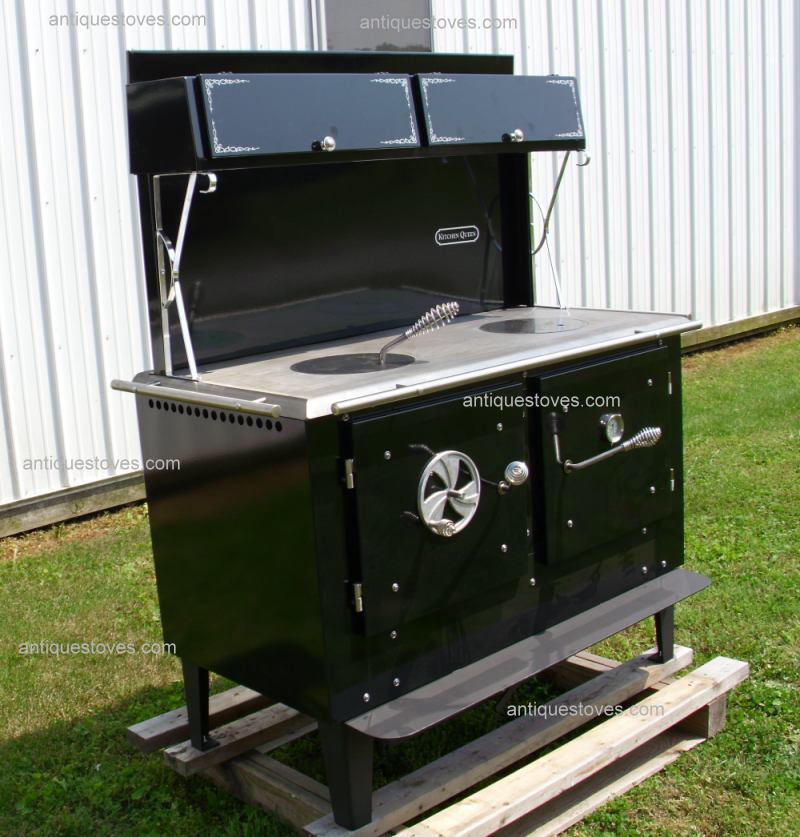

Kitchen Queen wood cook stove with warming oven

Kitchen Queen

with warming oven

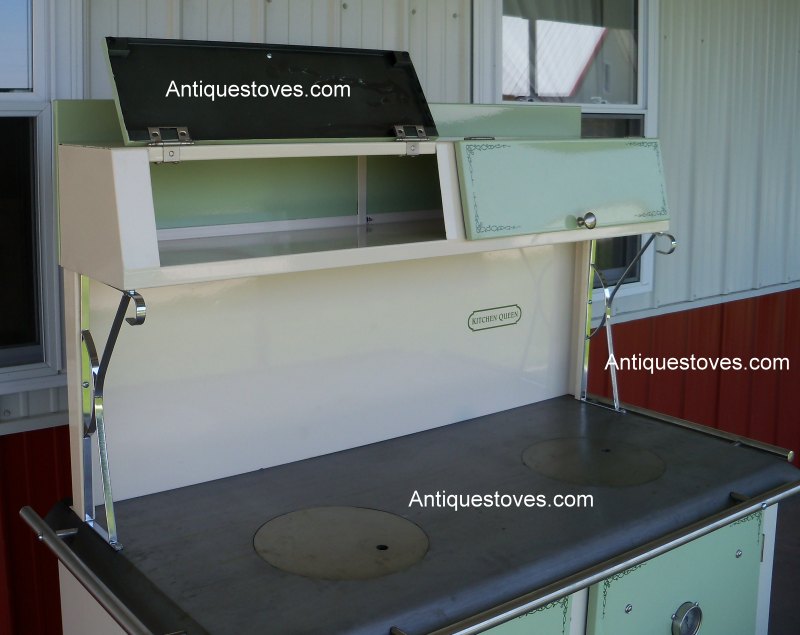

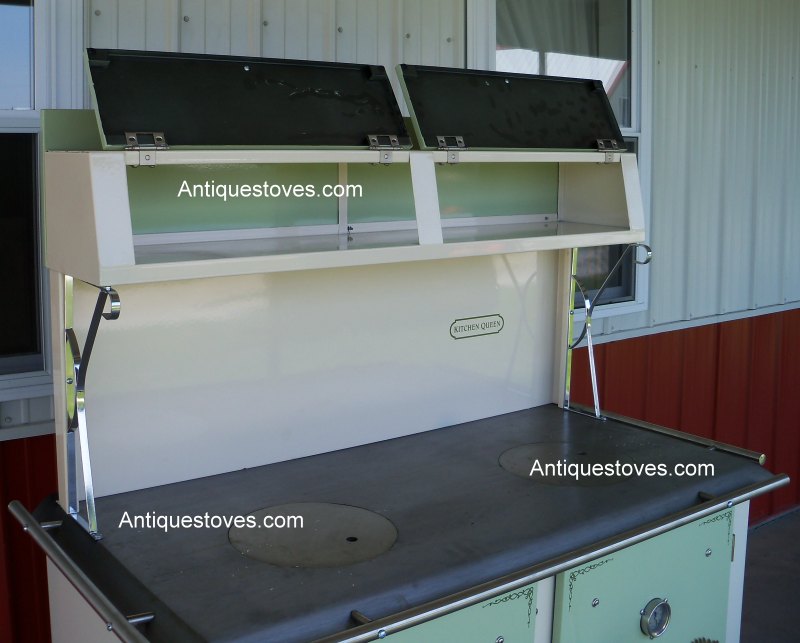

Kitchen Queen wood cook stove warming oven only

Kitchen Queen warming oven

Kitchen Queen wood cook stove with warming oven side view

Kitchen Queen

warming oven side view

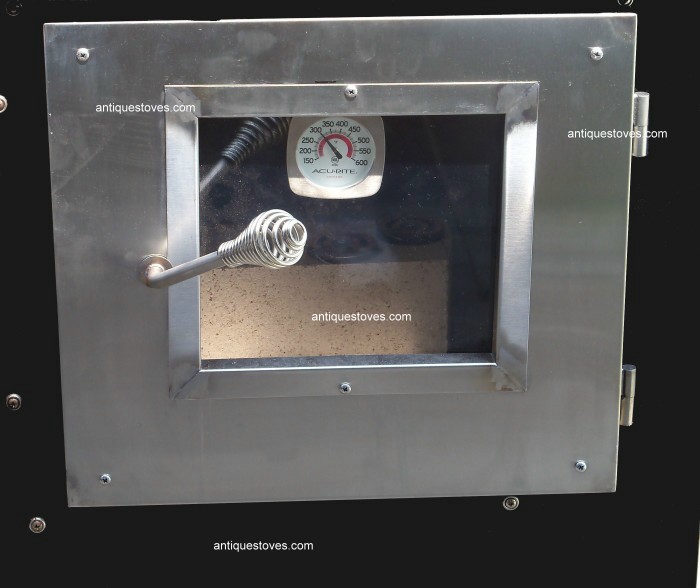

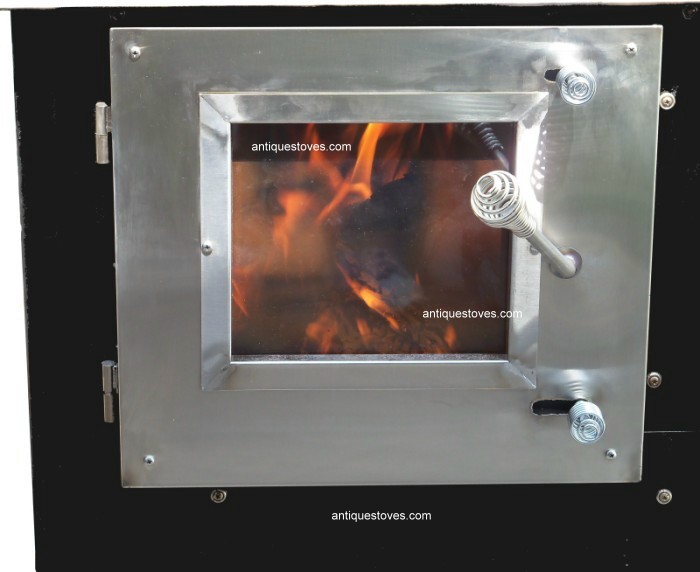

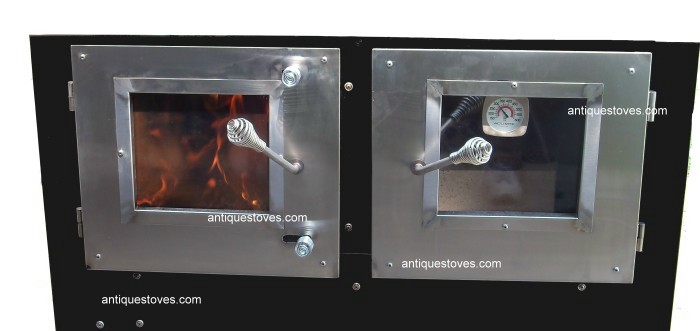

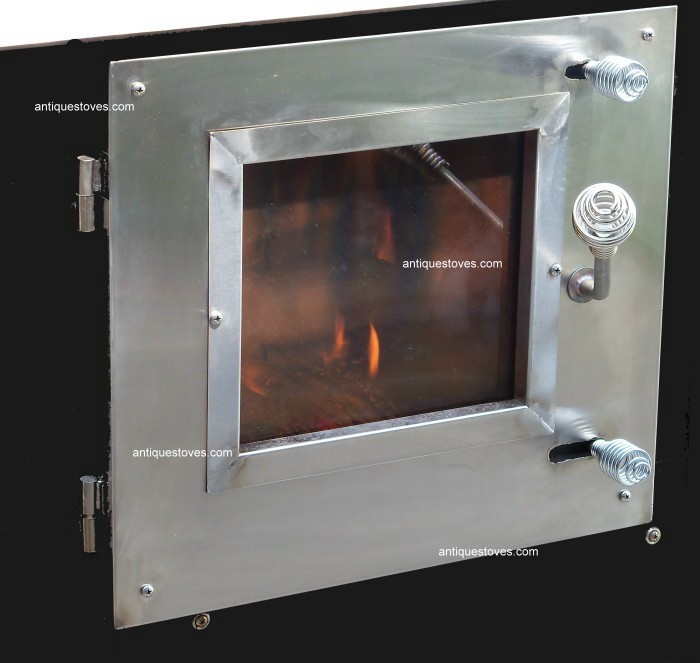

Kitchen Queen Flame View and Oven View Doors

These doors will not void the U.L. listing


Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove

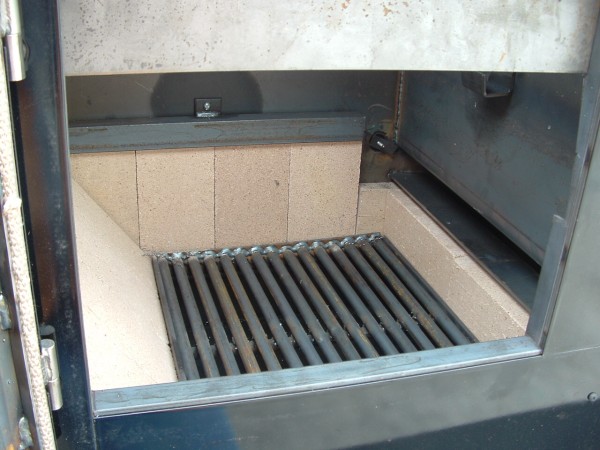

Kitchen Queen firebox

Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove

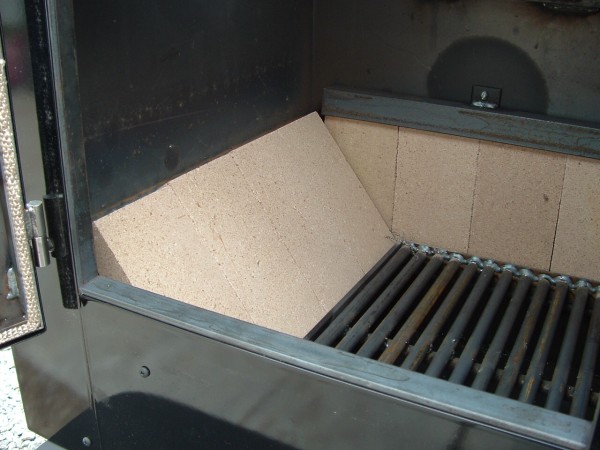

Kitchen Queen firebox (left side)

amish, amish made, wood, wood cooking, wood heating, cook stove, cookstove, cookstoves, kitchen queen, Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove

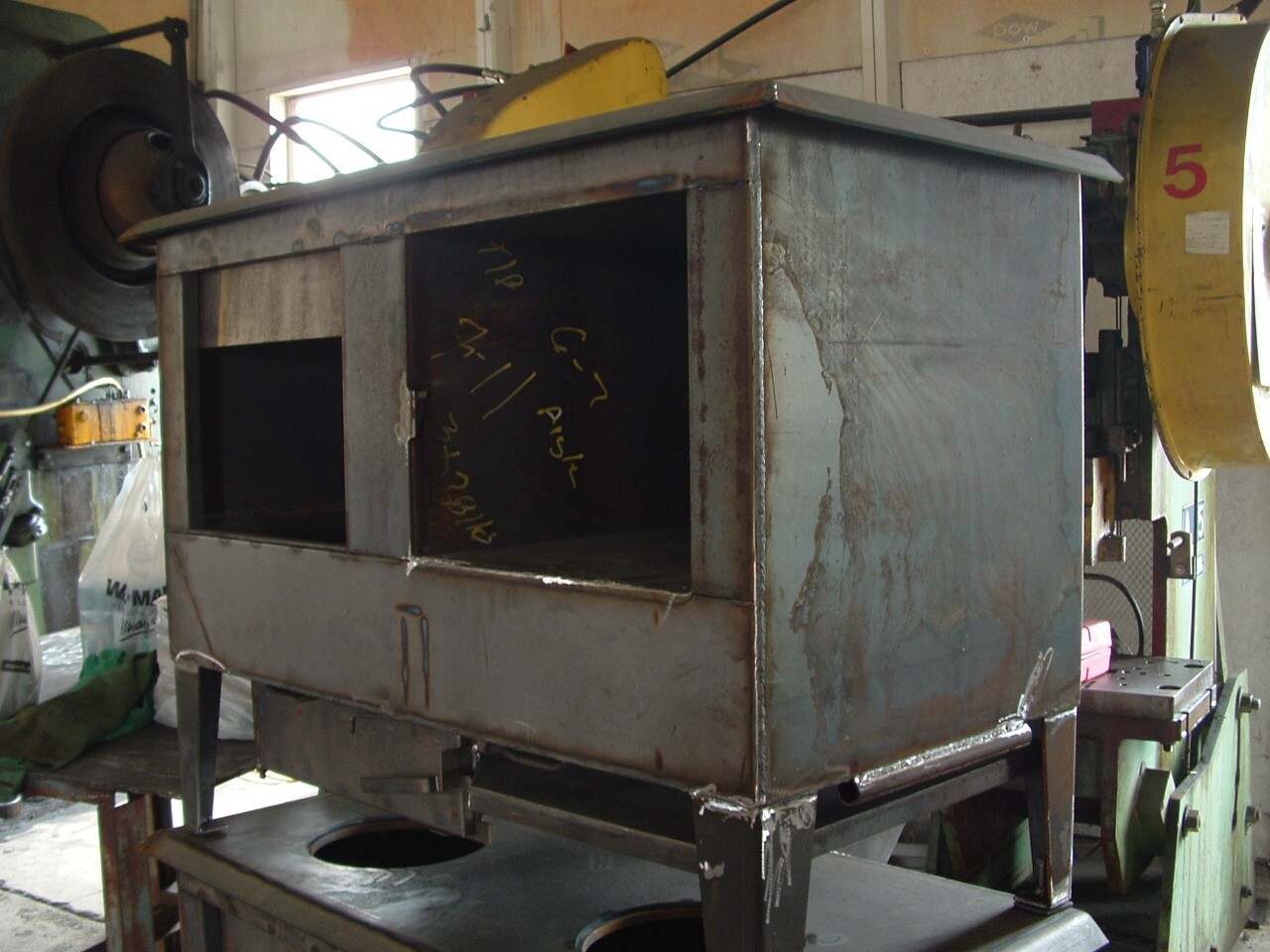

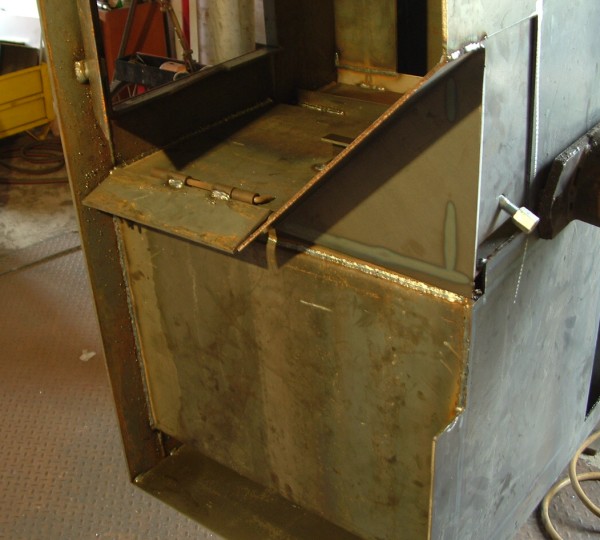

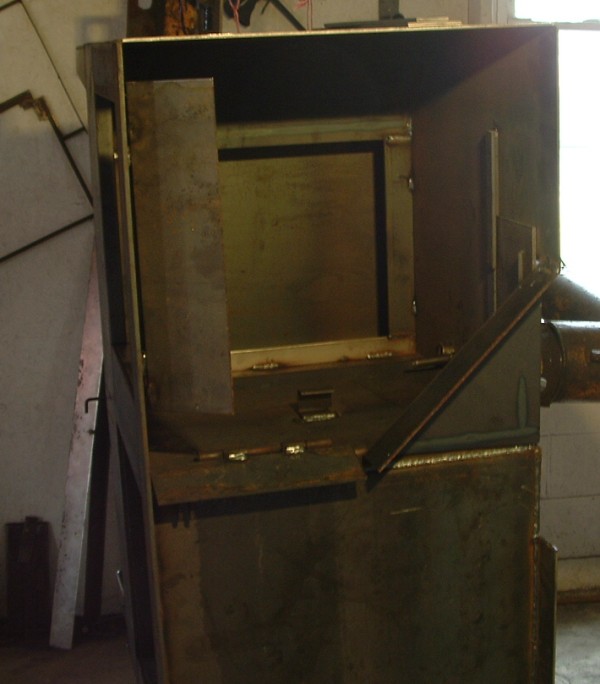

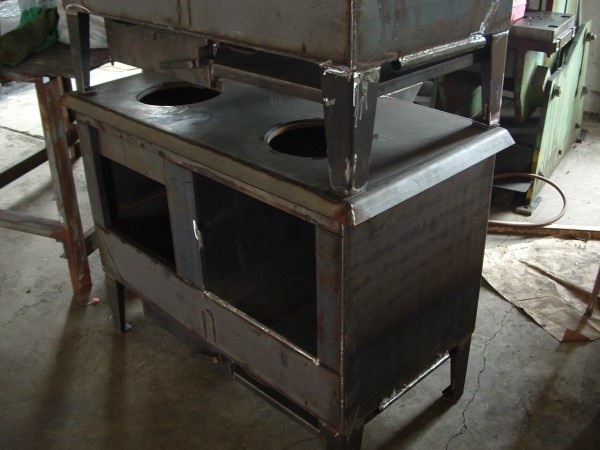

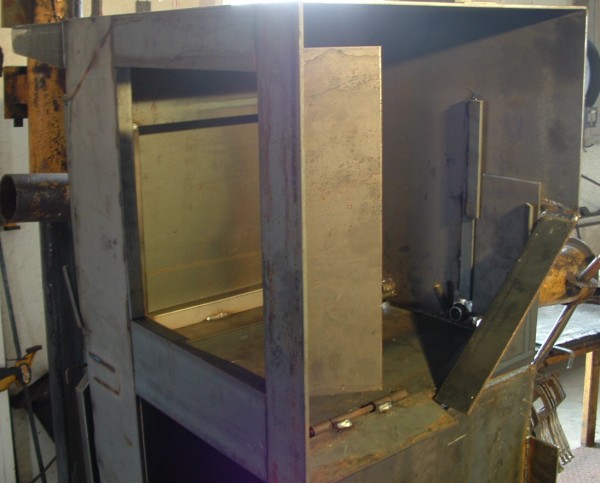

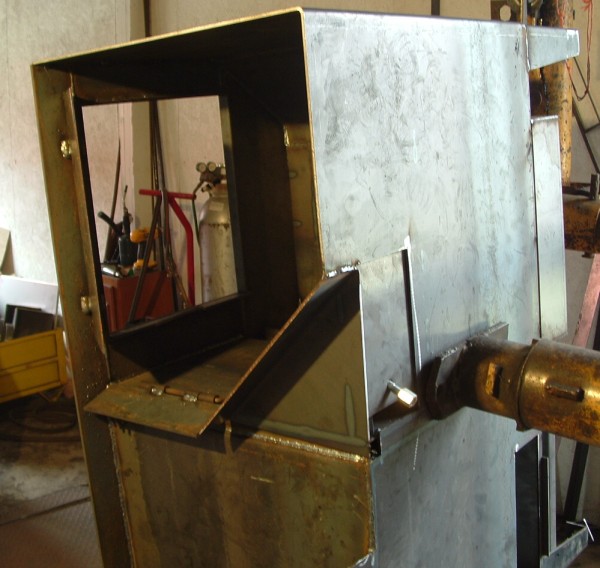

Kitchen Queen construction

Click on pictures to enlarge

The Kitchen Queen Firebox

A big advantage that Kitchen Queen has over most other wood cookstoves is the size of the firebox. Old models in particular tended to have very small fireboxes and, as mentioned before, were so poorly located that natural heat convection was hindered rather than helped. The both models of Kitchen Queen comes equipped with grates and a large ash pan for easy, clean ash removal. The ashes do not have to be shaken down to allow draft to get to the fire.

Air is directed in through the door through a baffle that causes the air to be preheated before it enters the firebox making for a more efficient and hotter fire.

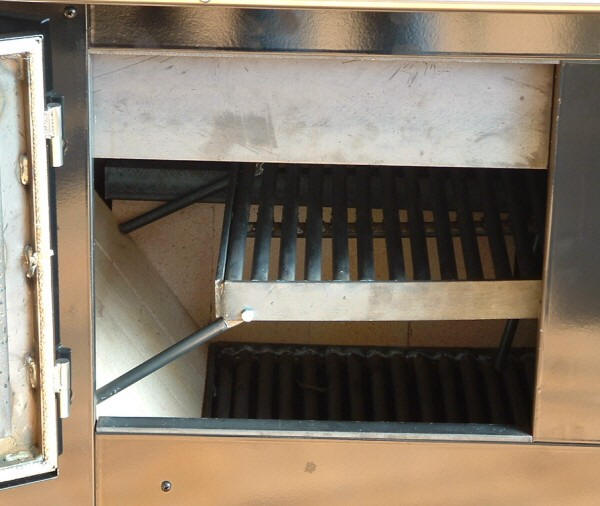

Kitchen Queen Summer  Grates

The Kitchen Queen summer grate raises the fire closer to the cooking surface.


Kitche Queen summer grates

Kitchen Queen summer grates

Kitchen Queen summer Grate Video

Click Here

Click on picture to enlarge

The Kitchen Queen wood cook stove Big Difference

The big difference between the Kitchen Queen wood cook stove and all other cookstoves that we know of is the route the heat and flue gases take around the oven.

All other stoves run the heat over the top of the oven and down the far side, often past a cooling surface such as a reservoir. Then it goes under the oven, where most of the time the flue gases have dropped below 250 degrees. Then these gases will condense or liquefy into liquid creosote leaving a sticky mess, not to say anything of rotting out the stove. In this method all your heat must be radiated down into the oven. And heat does not readily travel down, therefore most of your heat will be in the top of the oven, resulting in bread being burned on top and under baked on the bottom.

The heat and flue gases on the Kitchen Queen are directed under the oven first. And that is where you want the most heat b2caLL~ heat naturally travels up. It will actually flow up through the oven resulting in an evenly heated oven.

N ext, the heat travels up the far side, with never a cooling surface to cool down the gases. Then over the top where there is still plenty of heat left to radiate down into the oven to nicely brown your bread or whatever. Your bread will never come out under baked on the bottom and over baked on the top.

Another big Kitchen Queen difference is the reservoir. It is located on the back behind the top shelf where it will not take up any extra floor space. The water is not just heated by heat radiating from the stove. It has a stainless steel coil right in the firebox that will naturally circulate the water through the firebox and back into the reservoir. In other words, you have plenty of hot water all the time with our large 24 gallon capacity reservoir and handy tap within easy reach. No more dipping water out of a small hole. Fill your tea kettle or pan with hot water right out of a faucet, like you would in the sink.

Last, but not least, is the fire door. The model 480 Kitchen Queen has a large 14x16 inch opening and will take logs up to 20 inches long. The 380 Kitchen Queen door is 14x12 inches and will take logs up to 18 inches long. No more splitting wood down to fine kindling all the time.

Kitchen Queen, Kitchen Queen  Cookstove, Back view

Kitchen Queen back view

Kitchen Queen Wood Cook Stove for Heating your Home and Cooking

Kitchen Queen wood cook stove side view

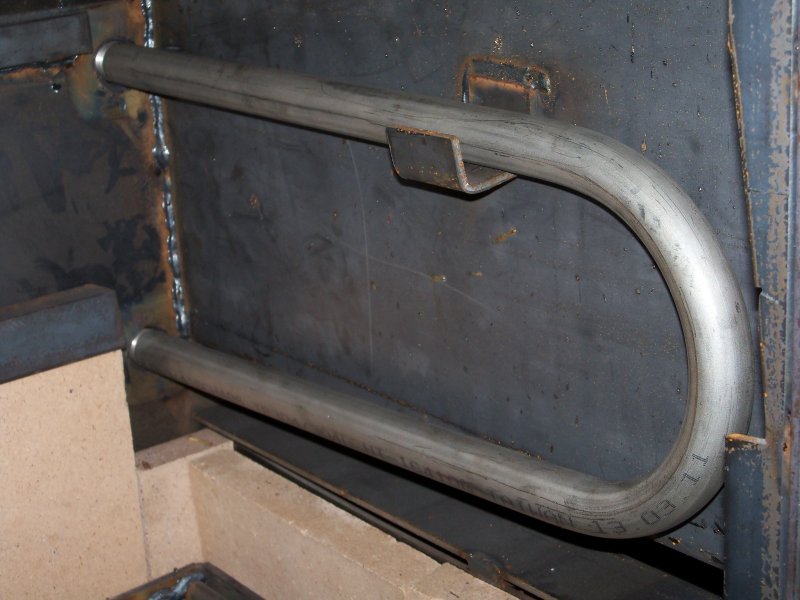

Water Coil inside

 of firebox

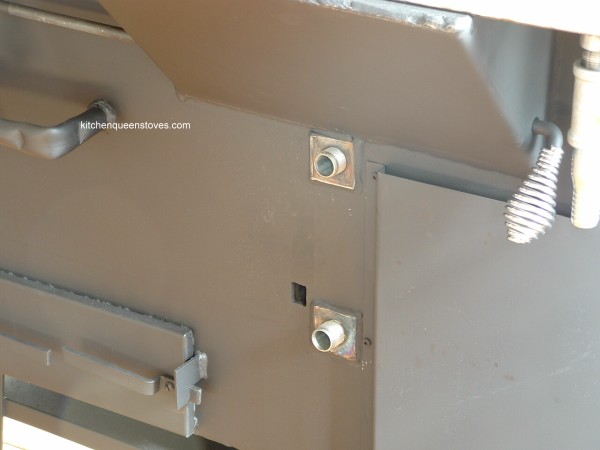

Kitchen Queen Water Coil hook up

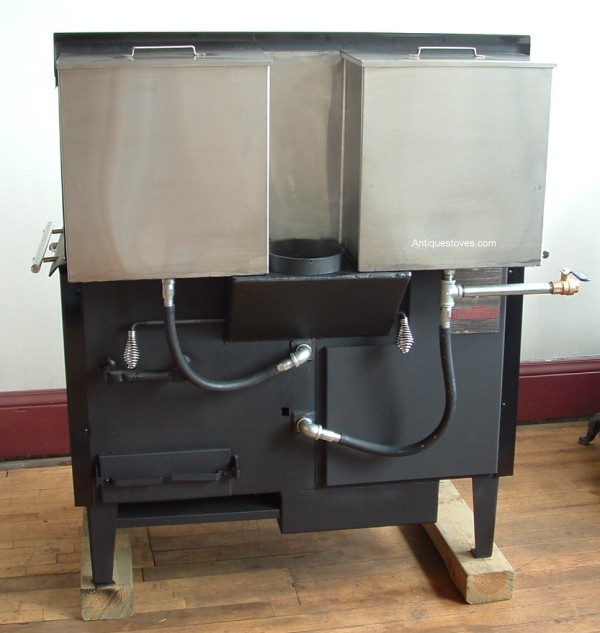

Back of stove

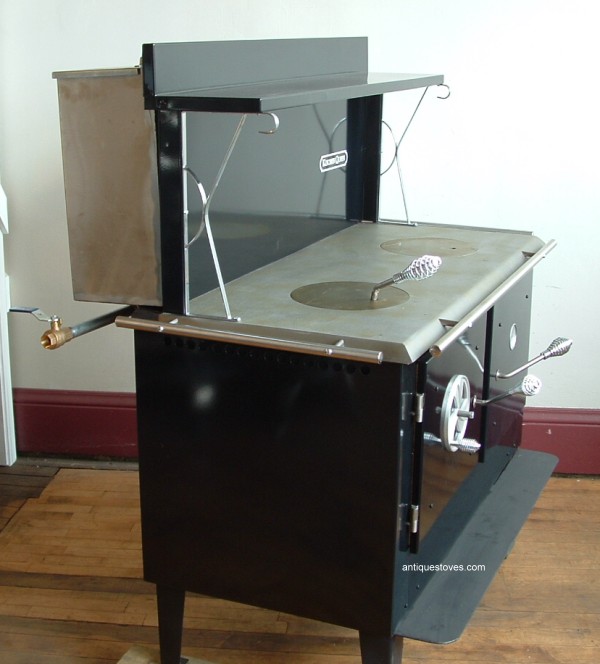

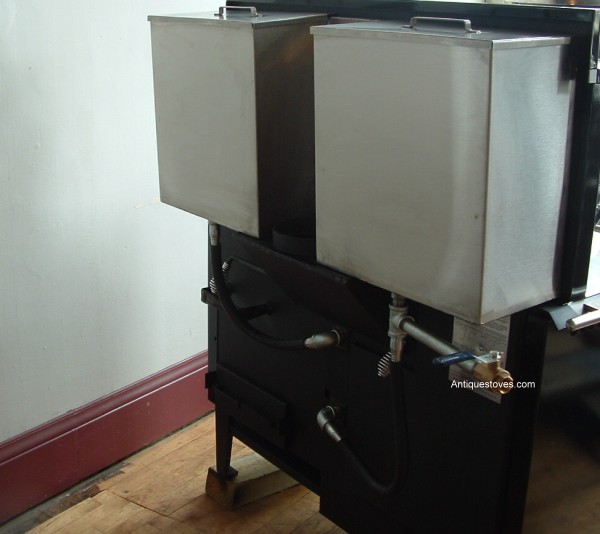

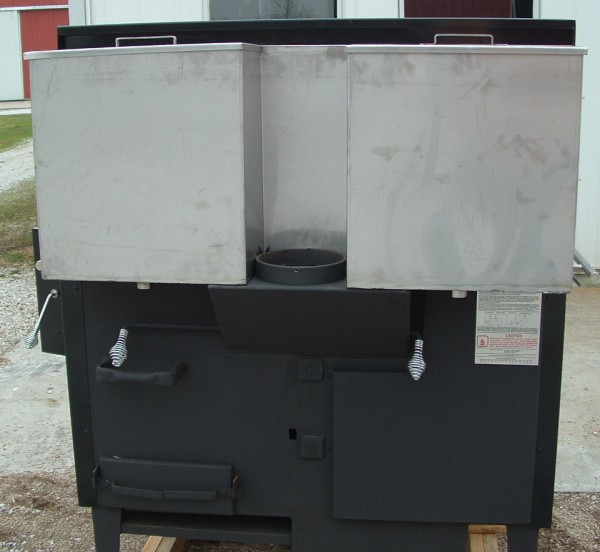

Kitchen Queen back of water reservoir view

Kitchen Queen side of reservoir view


Click on Kitchen Queen pictures to enlarge


No More Hot Water Bills


Enjoying the luxury of hot water can cost a family as much as $500 a year. Not so if you own a Kitchen Queen. This stove completely eliminates the need to run a conventional hot water heater, And the real beauty is your water is heated with energy that would otherwise be lost to the environment. You actually get free hot water while your food is being cooked and your house is being warmed.

At your option, your stove can be fitted with a stainless steel coil inside the firebox. This coil can either connect to a 25 gallon reservoir that fits neatly onto the back of the stove, or it can connect to a remote tank. In either case, water circulates through the system using the thermosyphon principle. This simply means that heated water rises and colder water falls. No pumps or pressure tanks are needed. Hot water is drawn from the system at a faucet conveniently located on the right side of the stove. Again, we have taken efficiency into consideration and placed these coils on a part of the firebox that does not come in contact with the hot gases that circulate around the oven.

Your situation might suggest connecting your Kitchen Queen to a remote tank. This tank might even be located upstairs, but unless you have a pressure tank of a water source that is higher than the house, your will have to carry water upstairs to fill the tank. Regardless of where the tank is located, the thermosyphon principle adequately circulates water through the system. How much hot water can the Kitchen Queen produce?
It can easily heat 40 gallons per hour, which is an adequate amount to take care of a large family's needs. And if you are concerned that hot water in summer will be a problem, consider the ease of connecting a solar heater to the system

How to install and use a Range boiler

Kitchen Queen Quality construction


Kitchen Queen, Kitchen Queen  Cookstove, inner view

Kitchen Queen,inner firebox

Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove
Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove

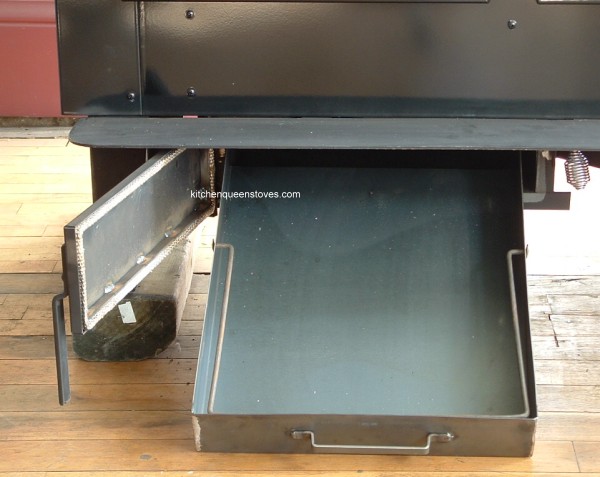

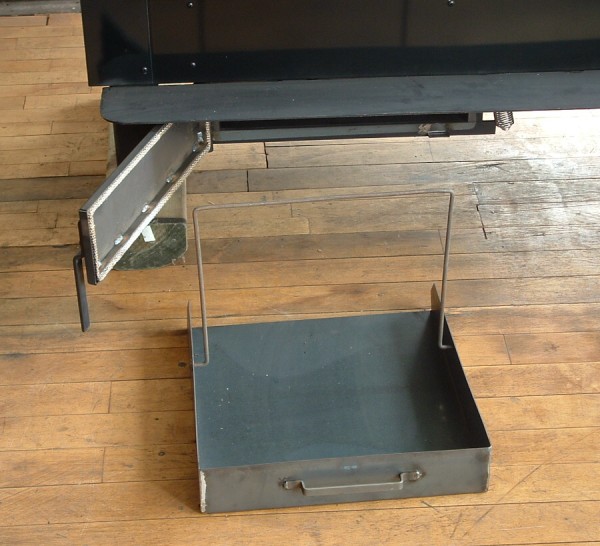

Kitchen Queen Ash Pan

Ash Pan Video Click Here

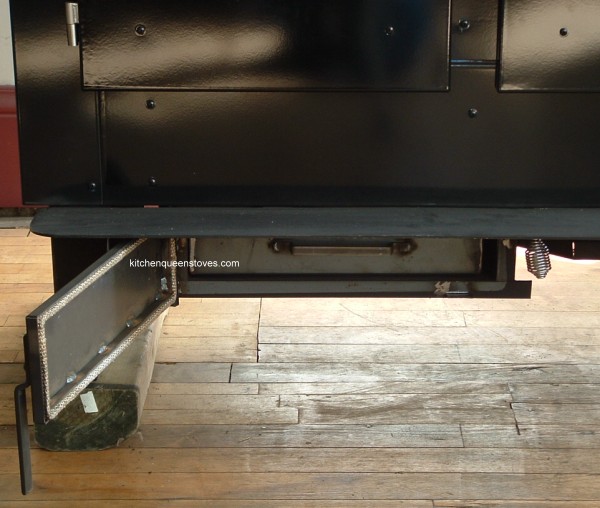

Kitchen Queen ash pan door

Kitchen Queen ash pan slide

Kitchen Queen ash pan out door open

Click on Kitchen Queen ash pan images to enlarge

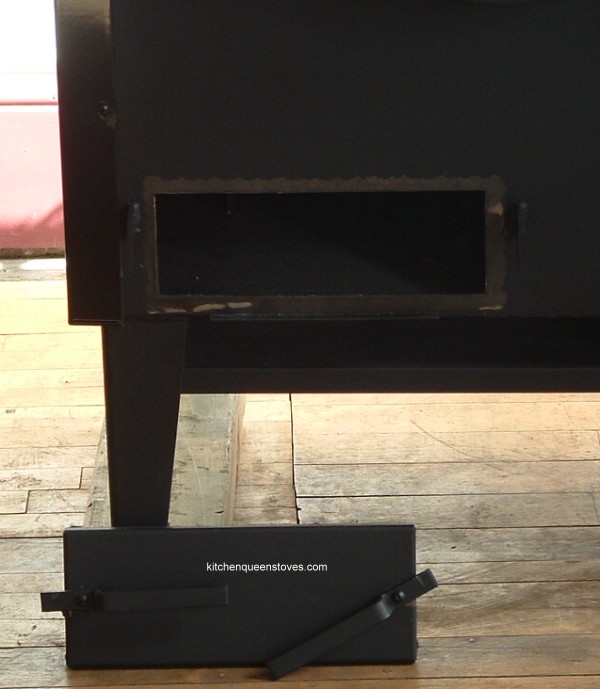

Kitchen Queen

Back of stove clean out

Click on picture to enlarge



She's Well ... Built And Pretty

The Models 380 Kitchen Queen and 480 Kitchen Queen are of identical construction. 3/16" and 1/4" mild steel is used wherever hot flue gases are contacted. The cooking surface is one-fourth inch ribbed mild steel with two 10-inch  lids. Joints are welded throughout.

The Kitchen Queen oven and firebox door handles are positive locking.

They are attractively made from spring steel and are nickel .. plated. The protective rods that surround the top of the stove are stainless steel.

The Kitchen Queen is finished with porcelain enamel for easy cleaning and long lasting beauty.

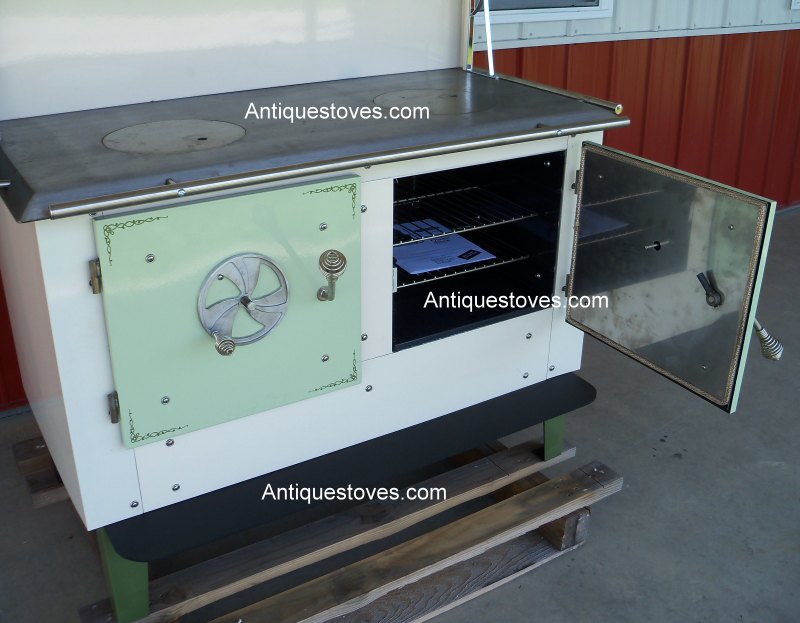

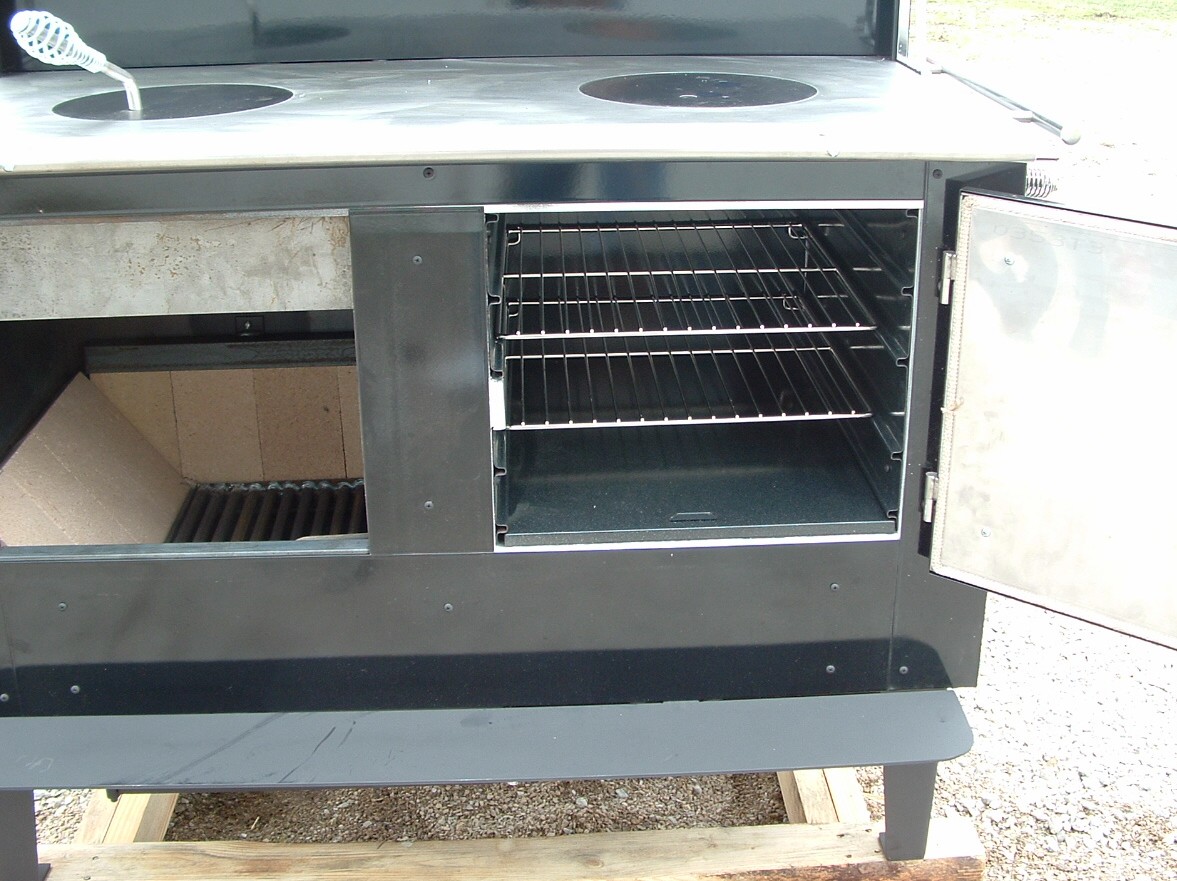

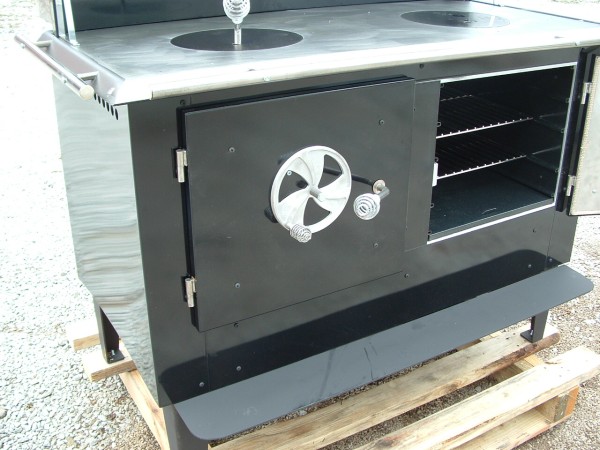

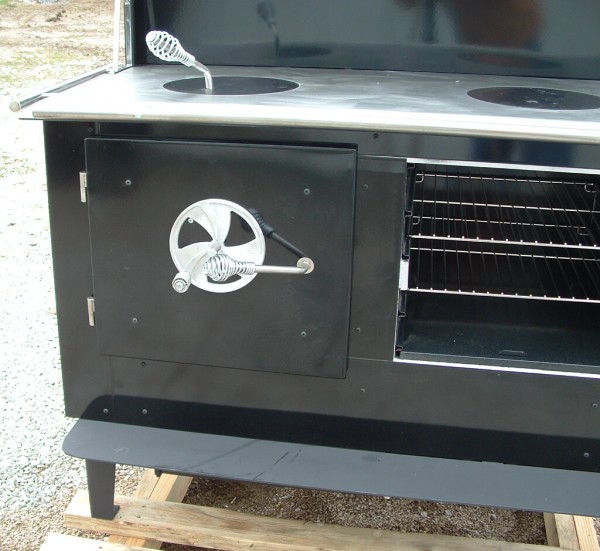

Kitchen Queen,firebox door and oven open

Kitchen Queen oven and firebox door open

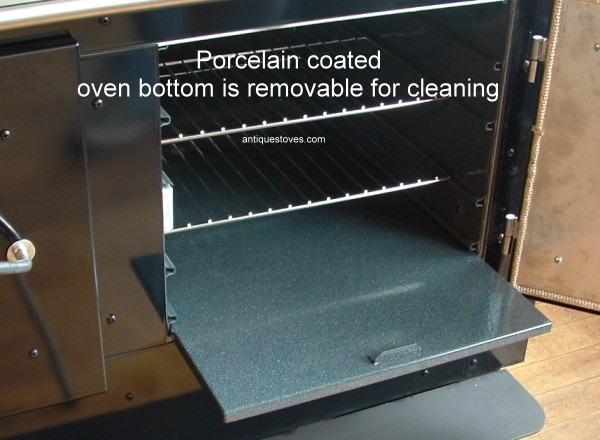

Kitchen Queen oven open

Kitchen Queen oven

Kitchen Queen,firebox door

Click on pictures to enlarge

The Kitchen Queen's Even ... Heating Oven

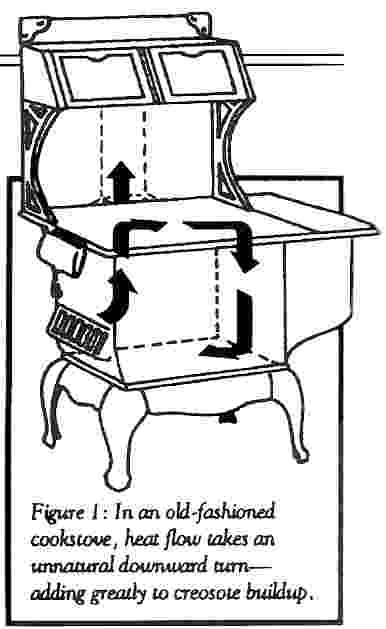

One of the more common complaints that cooks have with wood ranges is difficulty in keeping the oven evenly heated. We are pleased to announce that with the Kitchen Queen, such a problem has been eliminated. Again, it has to do with the fact that we routed the heat underneath the oven first. Look back to Figure 1 and grandma's cookstove. The top on the oven is heated first. Will the heat fall to the bottom of the oven? Never! Heat rises.

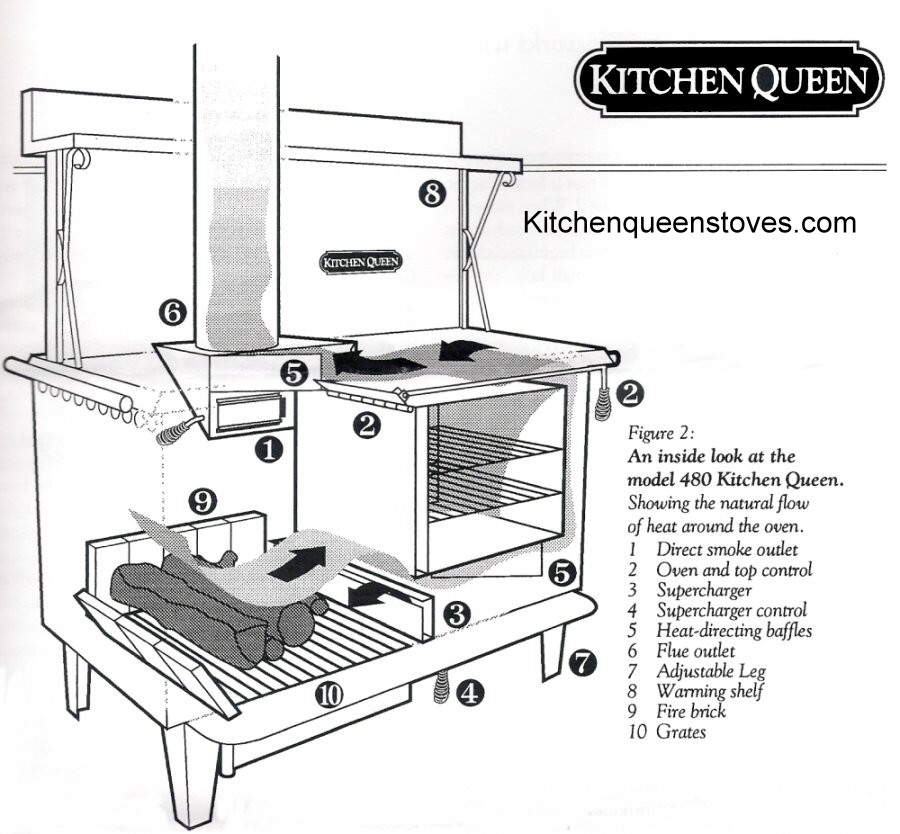

Now compare the Kitchen Queen in Figure 2. With the fire directed under the oven first, the bottom of the oven will heat first. The heat will then move upward naturally. Remember, the Kitchen Queen works with natural heat convection, not against it.

The Model 480 Kitchen Queen has a large eight .. loaf oven. The Model 380 Kitchen Queen will bake six loaves at once. Both have three shelves. The bottom shelf is heavy .. duty so it can be pulled out and used as a testing shelf. Built .. in thermometers are standard.


Kitchen Queen, Kitchen Queen  Cookstove, u.l. listed Cookstove

Two Stoves In One

    If you want to place a wood cookstove in a cabin or a small house, then look no further than the Kitchen Queen.

The large firebox and the superbly efficient design both work together to make it all you will need.

Imagine, one highly efficient, attractively constructed stove that cooks your food, heats your water, and warms your home---all with the same energy.

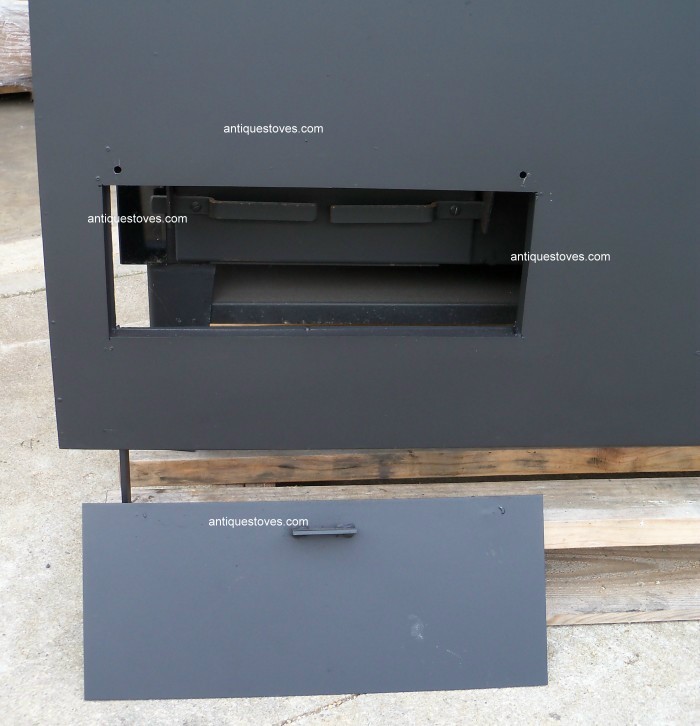

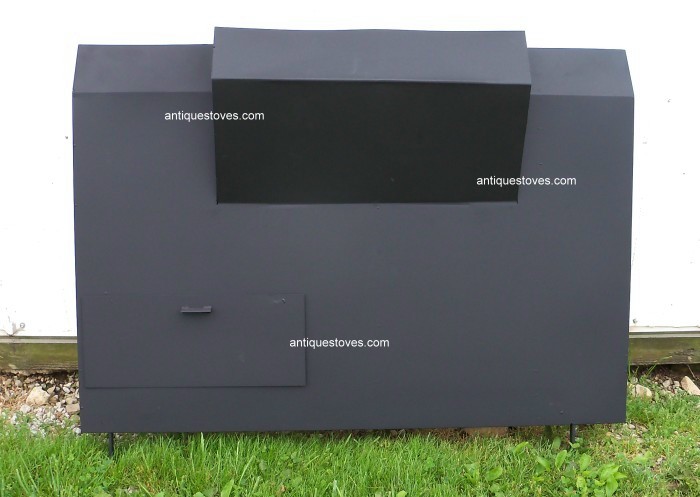

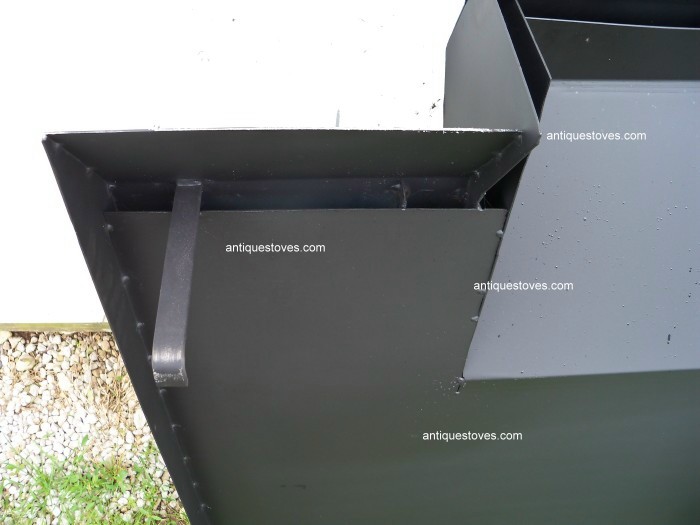

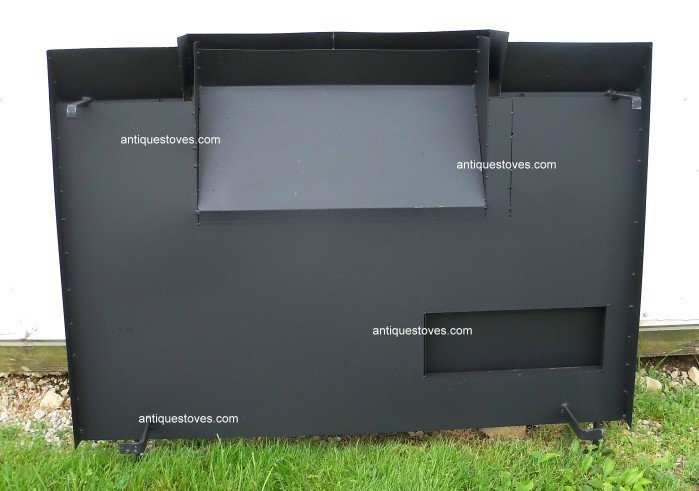

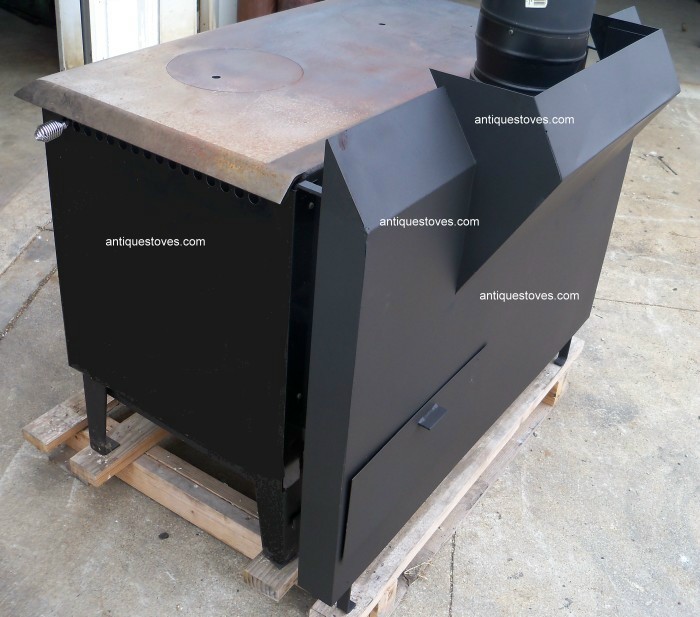

Heat Shield - Easy install

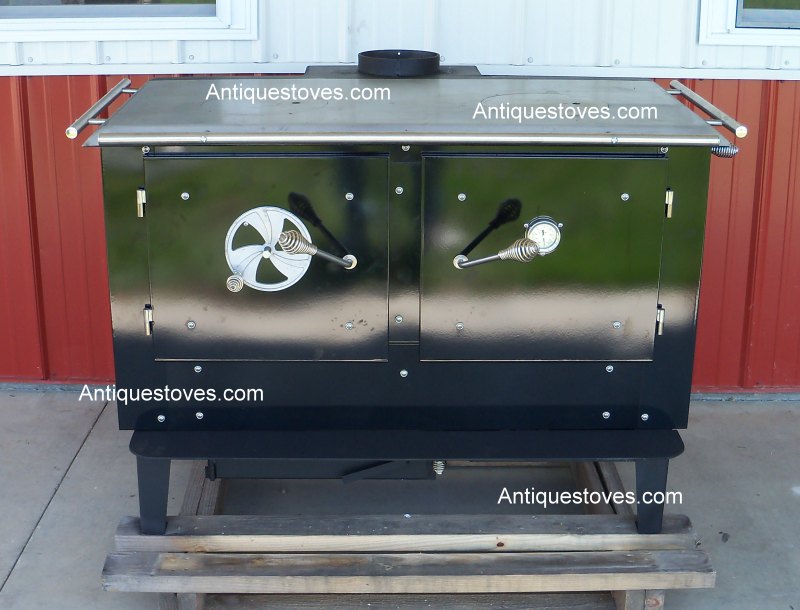

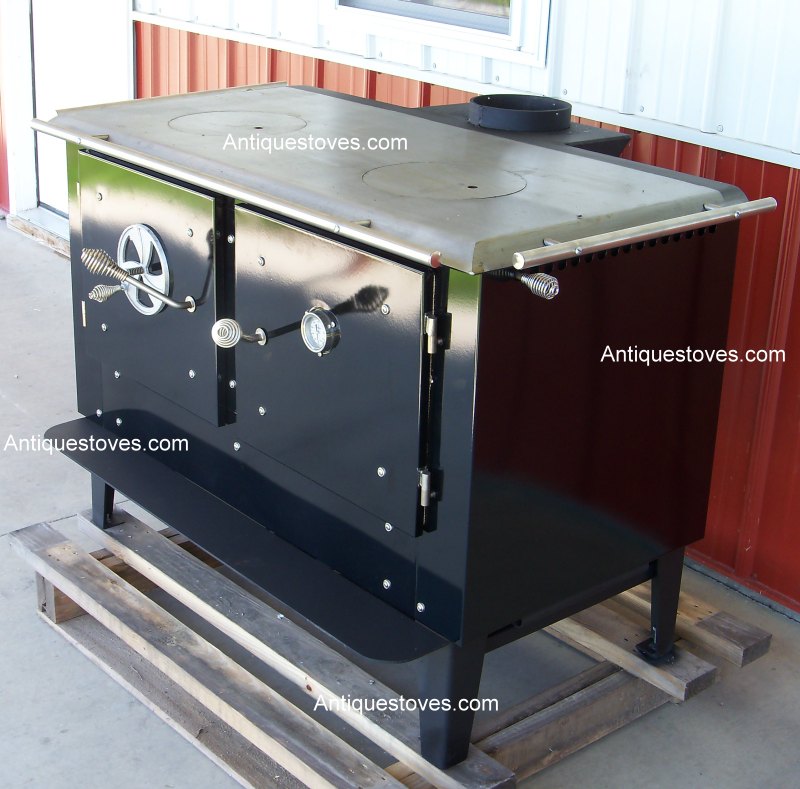

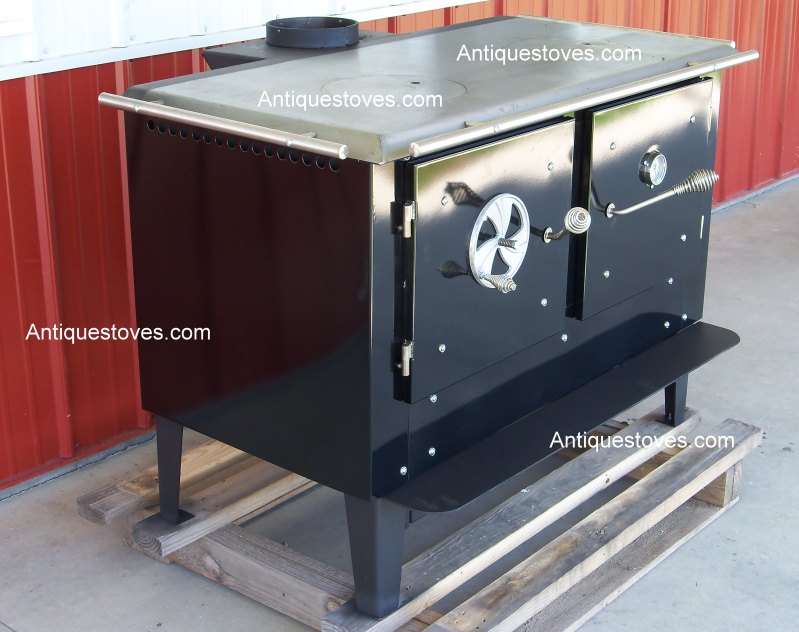

The Kitchen Queen Economy Model - 480

Comes with out Shelf or Warmer options

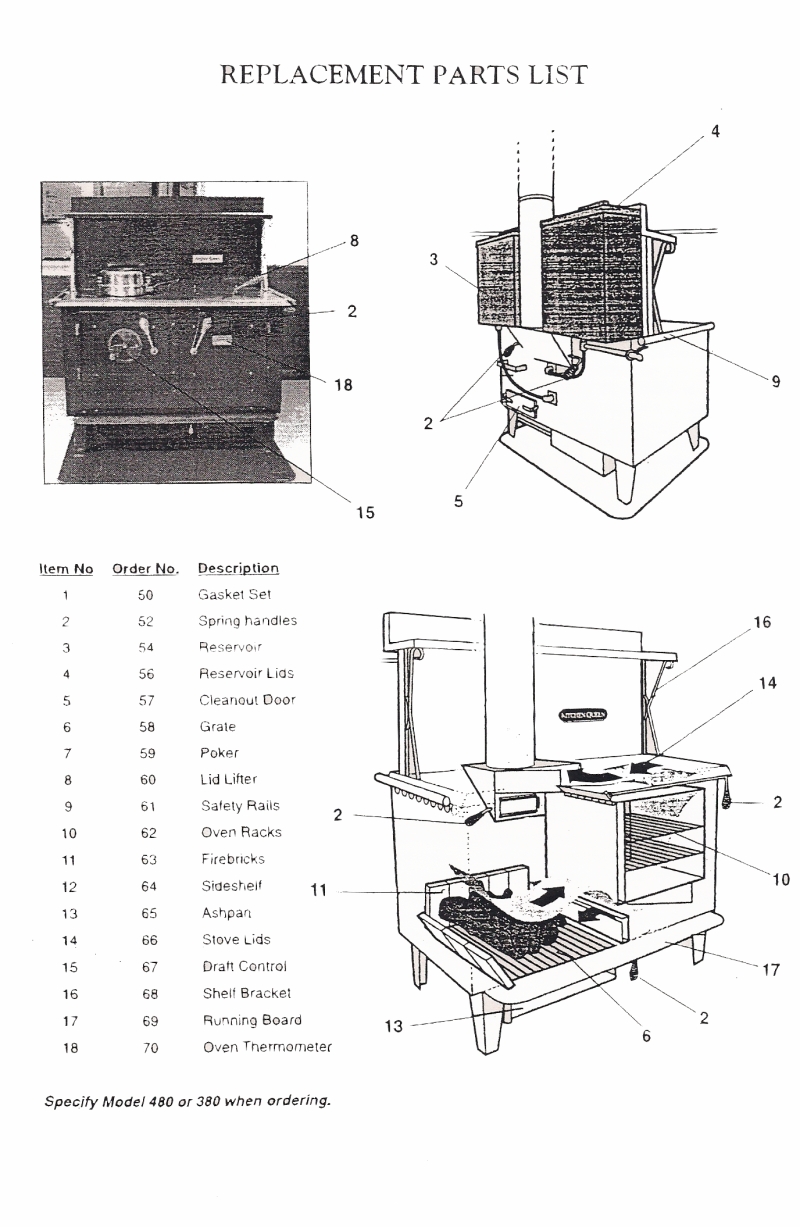

Kitchen Queen parts list

Kitchen Queen wood cook stove parts list

Kitchen Queen Clearances

Clearances to Combustibles
Side 12"
Rear 12"*
Corner 12"
Clearances to protected surfaces * for clearances to the flue collar, subtract 6.5"
Side 12"
Rear 12"
Corner 9"
Chimney Connector
Unprotected Surface 18"
Protected Surface 6"



Kitchen Queen 380 Specs 480 Specs
Overall size  42" L x 29" W x 32" H 51" L x 32" W x 34" H
Cooking surface 35" x 19" 43" x 21"
Warming shelf 7" x 37" 9" x 45"
Back 37" W x 21" H 45" W x 23" H
Oven 14" W x 11.25" H x 20" D 16" W x 13" H x 22" D
Oven capacity  6 Loaves 8 loaves
Firebox 18" W x 16" H x 19" D 20" W x 18" H x 22" D
Log Length 17" 19"
Firebox door 12" x 14" 14" x 16"
Approx. burn time 10 to 14 hours 12 to 16 hours
Approx. heating area 400 to 1500 sq. ft. 1500 to 2400 sq. ft
Flue outlet size 6 inches 7 inches
Reservoir capacity 17 gallons 24 gallons
Shipping weight 700 lbs. 800 lbs.
UL and ULC Listing 1482 1482

Shipping is additional
For your own price quote, please call us at (517)767-3606 or send us an e-mail.

Please let us know;

  1. The stove model you would like.
  2. The state and zip code you would like it shipped to.
